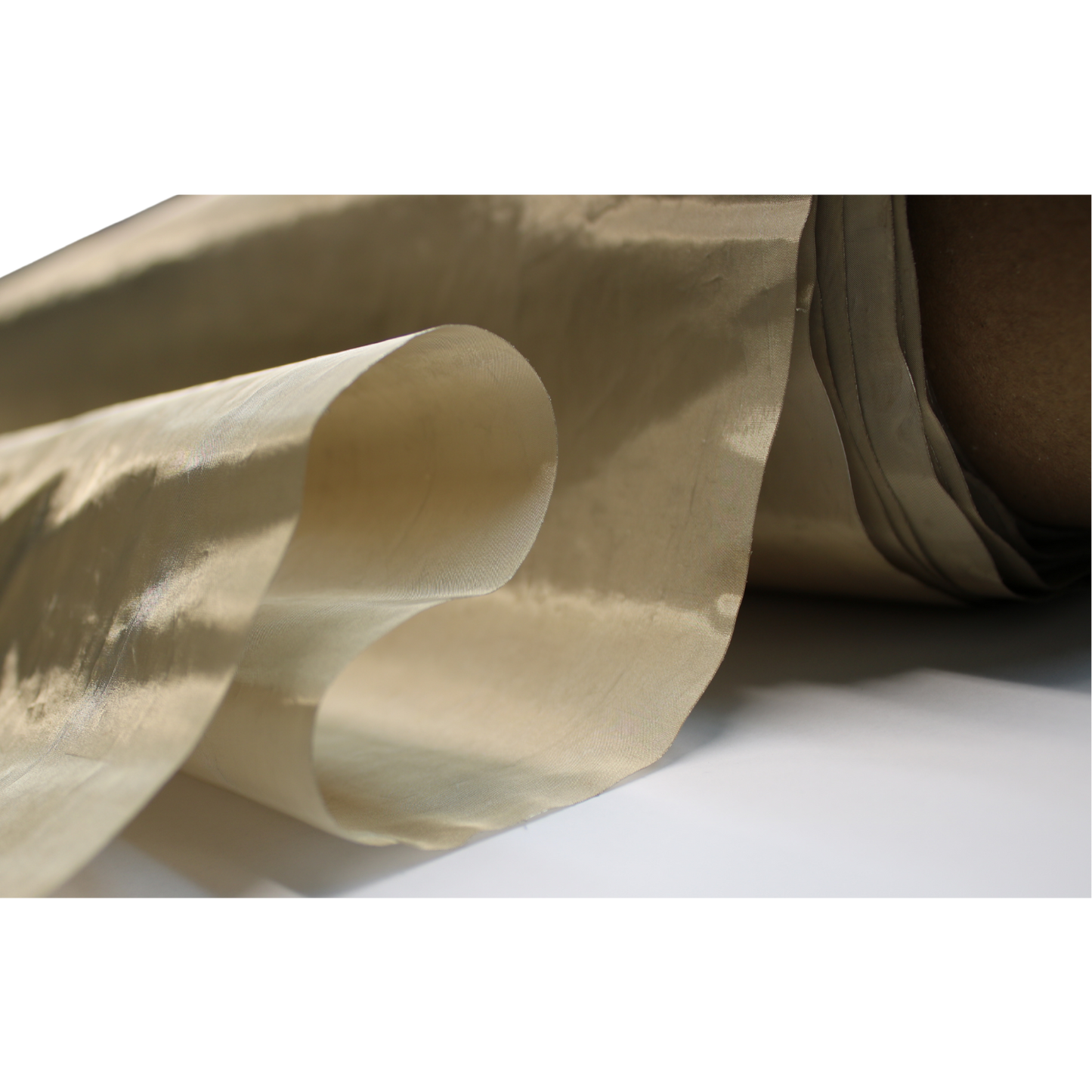

Shieldex® Brüssel

Shieldex® Brüssel

Shieldex® Brussels is metallized with pure silver and achieves a shielding of approx. 65 dB in the frequency range from 5 to 14 GHz. Due to the transparent mesh structure, it can be integrated as a window in EMC shielding tents or EMC shielding bags. The electrical resistance of < 0.6 Ω/□ also enables use in technical areas.

2,48 €
2,48 €
Sale Sold out

exkl. MwSt. | zzgl. Versand

Sample Size

Max. 5 samples
Apple Pay Google Pay PayPal Mastercard Maestro Klarna Visa

Applications

Shieldex® Brussels is a mesh fabric metallized with pure silver and the predecessor of Shieldex® Nantes. With an electrical conductivity of < 0.6 Ω/□, this conductive fabric can be used for all thermally and electrically conductive products. With a shielding performance of approx. 65 dB in the frequency range from 5 to 14 GHz, it is also ideal for all EMC applications.

For example, it is used as a window in EMC shielding tents or EMC shielding bags. The mesh structure allows visual inspection of the electronic device inside the shielding tent without any loss of shielding performance. RoHS and REACH conformity is provided.

Commonly used for

  • Shielding tents
  • EMC applications

Technical data

Shielding capability (0.2–2 GHz)

Average of 58 dB from 0.2 - 2 GHz

Shielding capability (2–5 GHz)

Average of 61 dB from 2 - 5 GHz

Shielding capability (5–14 GHz)

Average of 65 dB from 5 - 14 GHz

  • Fabric: fabric
  • Material: 100% polyamide
  • Surface resistance: < 0.6 Ω/□
  • Weight: 55 g/m² ± 12%
  • Thickness: 0.12 mm ± 12 S

Data Sheet

Download data sheet

Custom Sizes

Depending on the design and model, our pouches in custom sizes are subject to a minimum order quantity (MOQ) of 50 to 100 units. The exact tier depends on the chosen variant – we would be happy to advise you individually on the options best suited to your needs.

Closure Mechanism

By default, our pouches come equipped with a hook-and-loop (Velcro) closure. On request, we also offer additional closure types – including eyelets for security seals as well as a snap-lock closure. Please note that alternative closure types – as with our custom sizes – are subject to a minimum order quantity (MOQ). We would be happy to advise you individually on the options best suited to your needs.
