sample set EMV Fabrics
sample set EMV Fabrics
22,31 €
exkl. MwSt. | zzgl. Versand

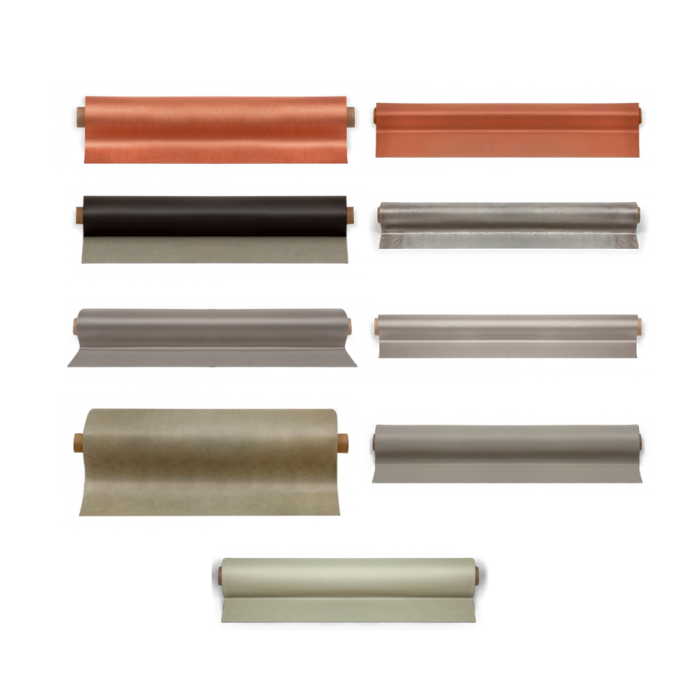

The Shieldex® EMV Fabrics sample set includes:
- Handmuster Kassel RS
- Handmuster Berlin RS
- Handmuster Bremen RS
- Handmuster Kiel + 30
- HandmusterNora Dell CR
- hand sample Pisa RS
- hand sample Porto RS
- hand sample Zell RS CR
- Handmuster Zeven + 30
Couldn't load pickup availability
Shieldex® Kassel RS
Shieldex® Kassel RS
Conductive fabric metallized with copper and silver. With an electrical resistance of <0.03 Ω/□, Shieldex® Kassel RS is ideal for all technical applications.
These include textile conductor tracks as well as the shielding of cables and rooms against electromagnetic radiation.
Shieldex® Berlin RS
Shieldex® Berlin RS
Shieldex® Berlin RS is the perfect all-rounder for all technical and electromagnetic shielding products.
With an average shielding performance of 60 dB in the frequency range 0.2 to 14 GHz, this conductive fabric is ideal for all EMC applications.
Coated on one side with a conductive polyurethane, this conductive fabric is particularly resistant to environmental influences. OEKO-Tex® Standard 100 certification is given.
Shieldex® Bremen RS
Shieldex® Bremen RS
Electrically and thermally conductive fabric - Shieldex® Bremen RS is a ripstop fabric metallized with pure silver and is ideal for shielding against electromagnetic radiation in the frequency range from 0.2 to 14 GHz.
Thanks to the silver and the OEKO-Tex® conformity, this antimicrobial fabric can also be used for hygiene applications. Silver is a biocidal active ingredient according to Section 67 of the EU Biocide Regulation.
Shieldex® Kiel + 30
Shieldex® Kiel + 30
With a copper content of almost 50%, this thermally bonded nonwoven fabric is ideal for shielding rooms against electromagnetic radiation. In the frequency range 0.2 GHz to 5 GHz, this conductive nonwoven fabric has a shielding performance of approx. 85 dB and is therefore ideal for shielding rooms and electronic components.
Shieldex® Nora Dell CR
Shieldex® Nora Dell CR
Shieldex® Nora Dell CR is metallized with silver, copper and nickel. With approx. 50% copper coating, this conductive textile is suitable for all technical applications as well as for shielding against electromagnetic radiation in the industrial sector. The additional CR coating makes the conductive textile compatible for cleanroom applications.
Shieldex® Pisa RS
Shieldex® Pisa RS
Polyester fabric with a shielding performance of 88 dB in the frequency range up to 26 GHz! Shieldex® Pisa RS is metallized with nickel and copper. The nickel coating gives the fabric very good conductivity and is used for room shielding and EMC tents due to its excellent shielding against electromagnetic radiation.
Shieldex® Porto RS
Shieldex® Porto RS
Conductive polyester fabric metallized with copper and tin. The shielding performance of Shieldex® Porto RS is up to 87 dB in the frequency range up to 26 GHz! The tin coating enables the conductive textile to be soldered. In addition, its structure makes it ideal for textile seals.
Shieldex® Zell RS CR
Shieldex® Zell RS CR
Extremely conductive fabric metallized with silver, copper and tin and an electrical surface resistance of 0.02 Ω/□. The additional CR coating makes the conductive textile Shieldex® Zell RS CR compatible for cleanroom applications and also shields against infrared radiation.
