Shieldex® Nanking

Shieldex® Nanking

Thanks to its unique combination of conductive properties, light weight and high shielding performance of up to 70 dB, Shieldex® Nanking RS is a versatile choice for a wide range of applications where electromagnetic shielding is required.

2,48 €
2,48 €
Sale Sold out

exkl. MwSt. | zzgl. Versand

Sample size

Max. 5 samples
Apple Pay Google Pay PayPal Mastercard Maestro Klarna Visa

Properties & Applications

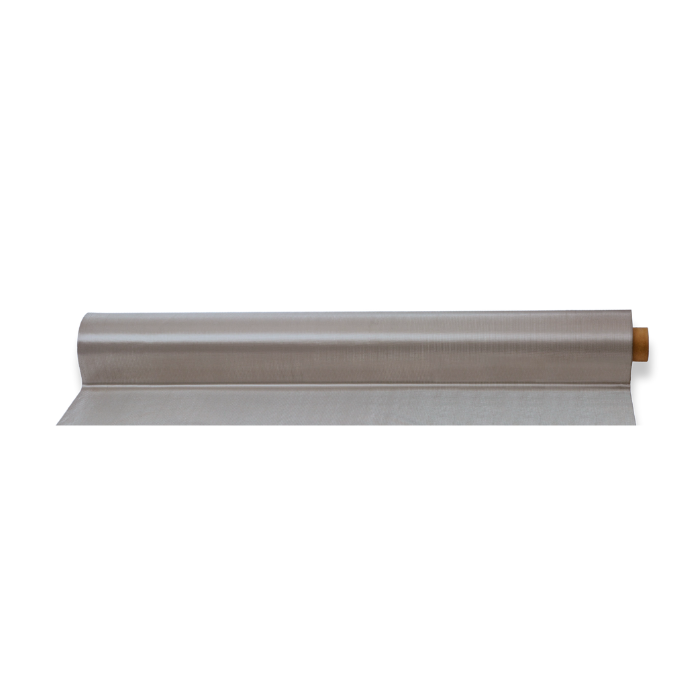

Shieldex® Nanking RS is a fabric metallized with nickel and silver (Ni/Ag). The shielding effect of Nanking RS is on average 70 dB in the frequency range from 30 MHz to 10 GHz. The combination of the low thickness of the material (0.101 mm ± 12%), the light weight (47 grams/m² ± 12%) and the low surface resistance of <0.3 Ω/□ makes Shieldex® Nanking RS a versatile, conductive fabric that can be used in a wide variety of applications.

Commonly used for

EMI/RFI cable shielding, I/O shielded panels, foam gaskets

Technical data

Flat goods:
knitted and crocheted fabrics



Surface resistance:
< 0.3 Ω/□



shielding capability (0.2–2 GHz)
> 70 dB


Weight
47 g/m² ± 12%


thickness
0.10 mm ± 12 %

Data sheet

Download data sheet
