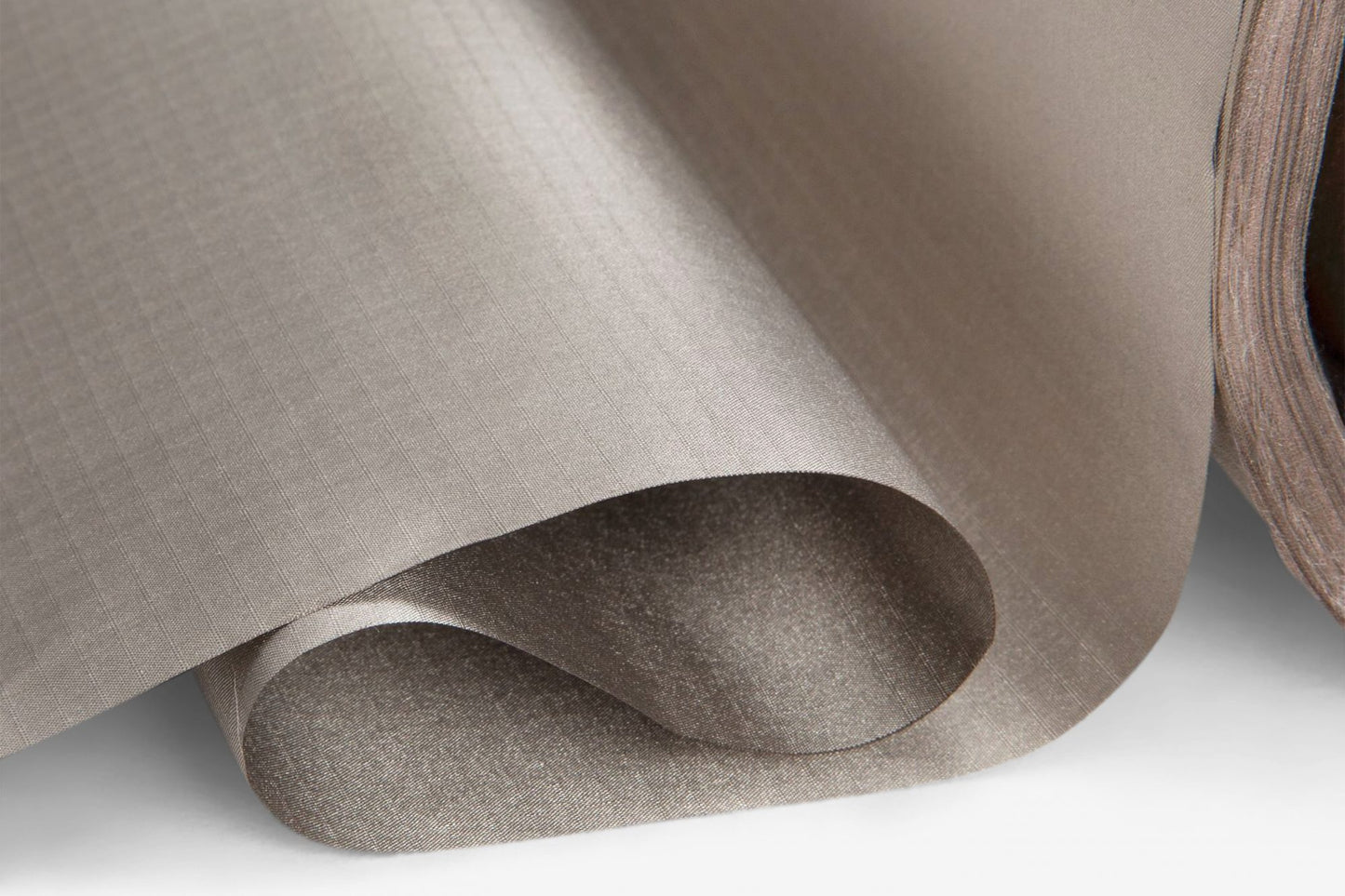

Shieldex® Pisa RS

Shieldex® Pisa RS

Polyester fabric with a shielding performance of 88 dB in the frequency range up to 26 GHz! Shieldex® Pisa RS is metallized with nickel and copper. The nickel coating gives the fabric very good conductivity and is used for room shielding and EMC tents due to its excellent shielding against electromagnetic radiation.

2,48 €
2,48 €
Sale Sold out

exkl. MwSt. | zzgl. Versand

Sample size

Max. 5 Muster
Apple Pay Google Pay PayPal Mastercard Maestro Klarna Visa

Properties & Applications

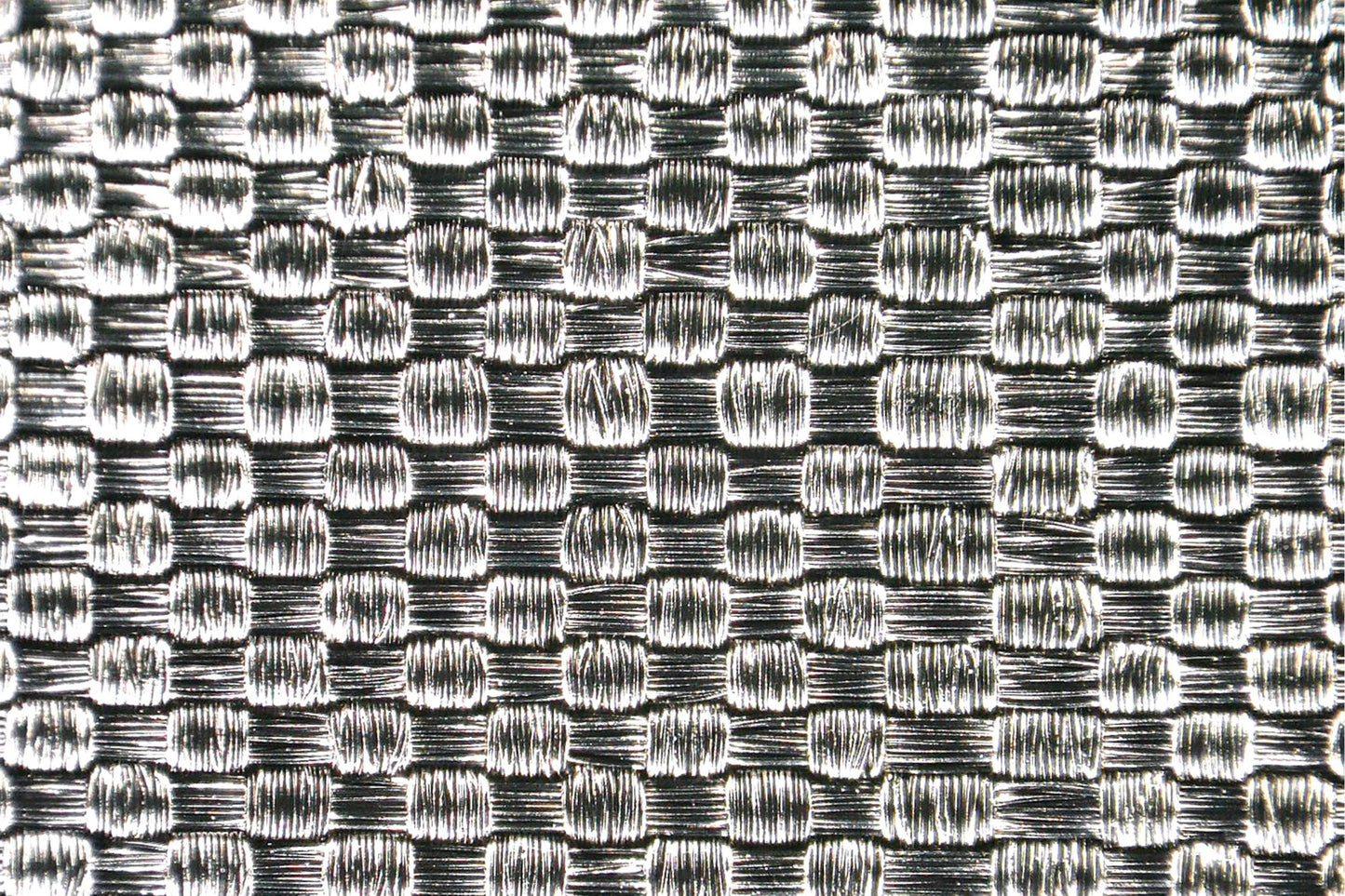

Shieldex® Pisa RS is a ripsop fabric whose base material is polyester. The conductive textile is metallized with copper and nickel. The nickel coating gives the fabric very good conductivity and shielding performance.



In industry, Shieldex® Pisa RS is used for many technical applications, but also for products that shield against electromagnetic radiation, such as textile cable shielding, room shielding and mobile EMC shielding tents. REACH and RoHS conformity is given.

Commonly used for

  • Shielding tents
  • Electromagnetic shielding

Technical data

shielding capability (0.2–2 GHz)

Average of < 71 dB from 0.2 GHz – 2 GHz

shielding capability (2–5 GHz)

Average of < 80 dB from 2 GHz – 5 GHz

shielding capability (5–14 GHz)

Average of <84 dB from 5 GHz - 14 GHz

Shielding Effectiveness (14-26 GHz)

Average of <88 dB from 14 GHz - 26 GHz



  • fabric: fabric
  • Material: 100% Polyester
  • Surface resistance: ≤ 0.05 Ω/□
  • Weight: 80 g/m² ± 10%
  • Thickness: 0.09 mm ± 12 %

Data Sheet

Download data sheet

  • Worldwide shipping
  • Made in Germany
  • Worldwide secure payment
