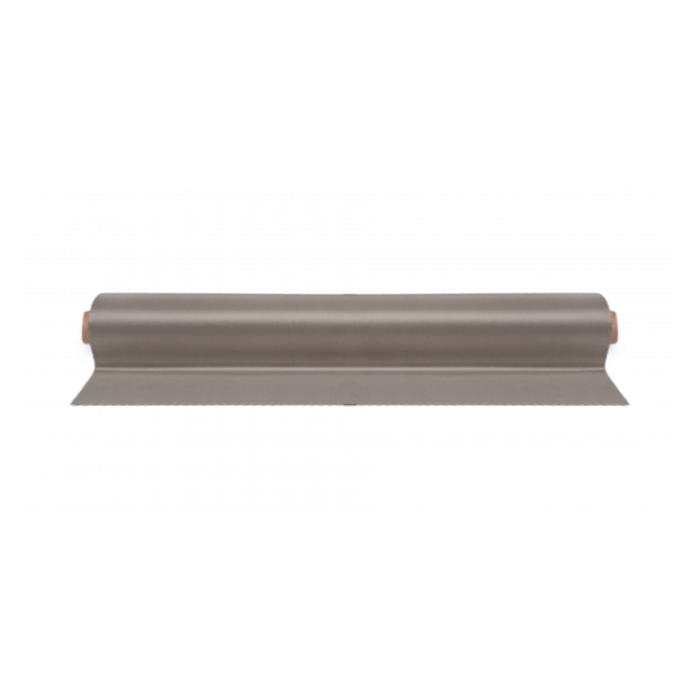

Shieldex® Nora Dell CR

Shieldex® Nora Dell has been metallized with silver, nickel and copper. Besides silver and nickel, copper is the most prominent metal with a share of about 50%. Due to the high copper content, thethermal and electrical conductivityof the fabric is increased enormously. Furthermore, this fabric is equipped with a special coating (CR) that makes this fabric compatible for cleanroom applications. In particular, Shieldex® Nora Dell CR is characterized by a very good conductivity of < 0.009 Ohm/□.

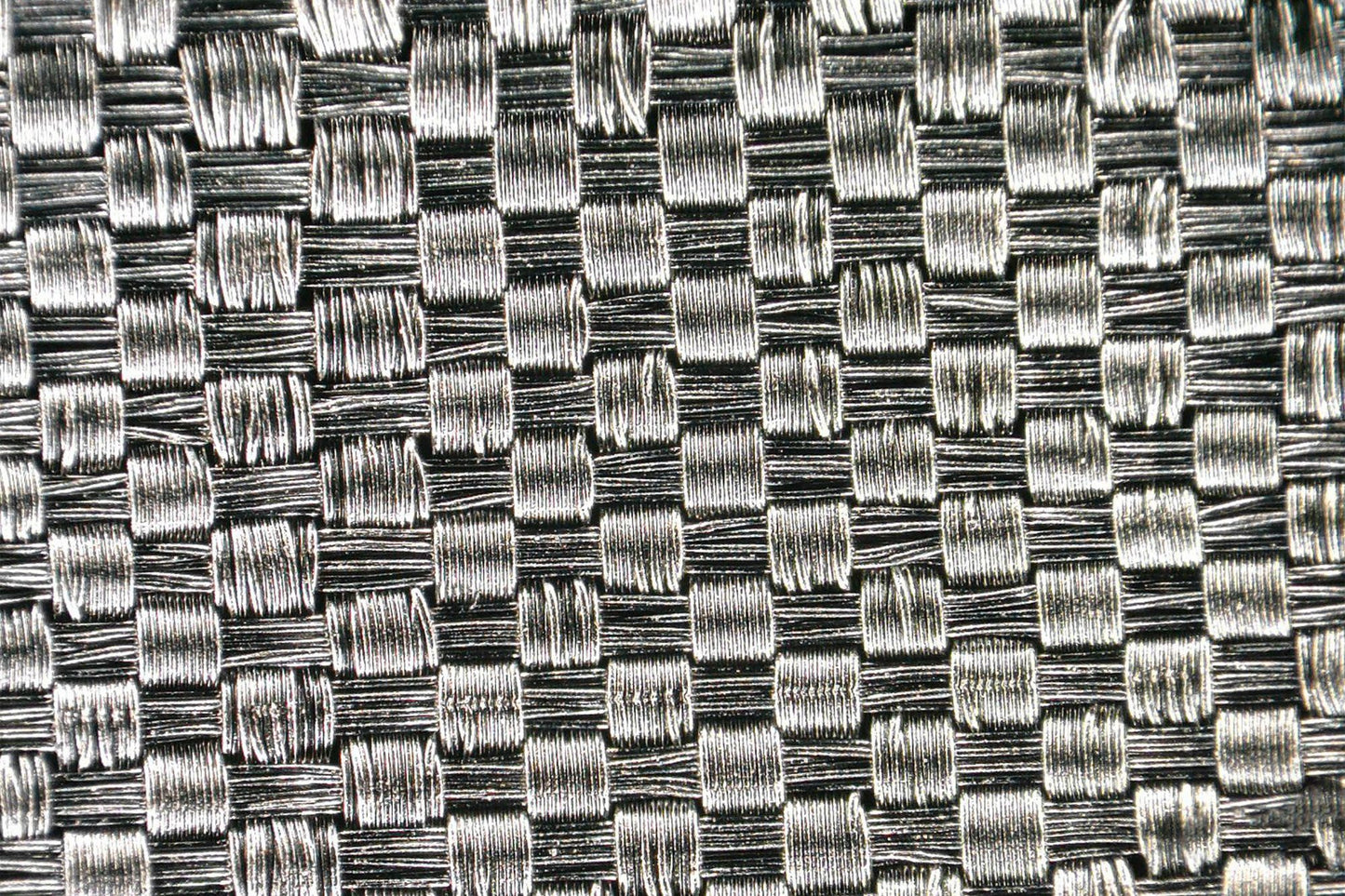

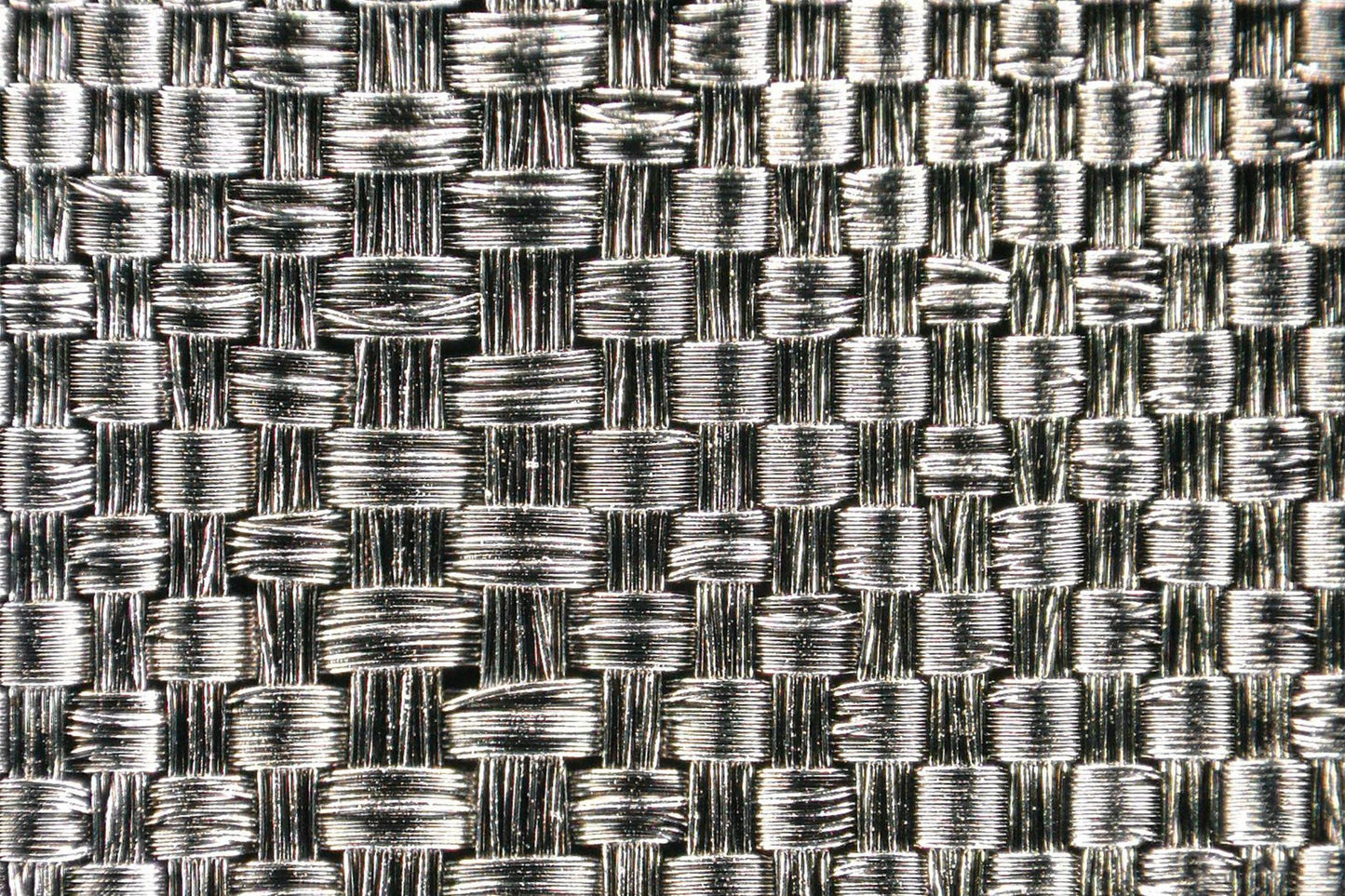

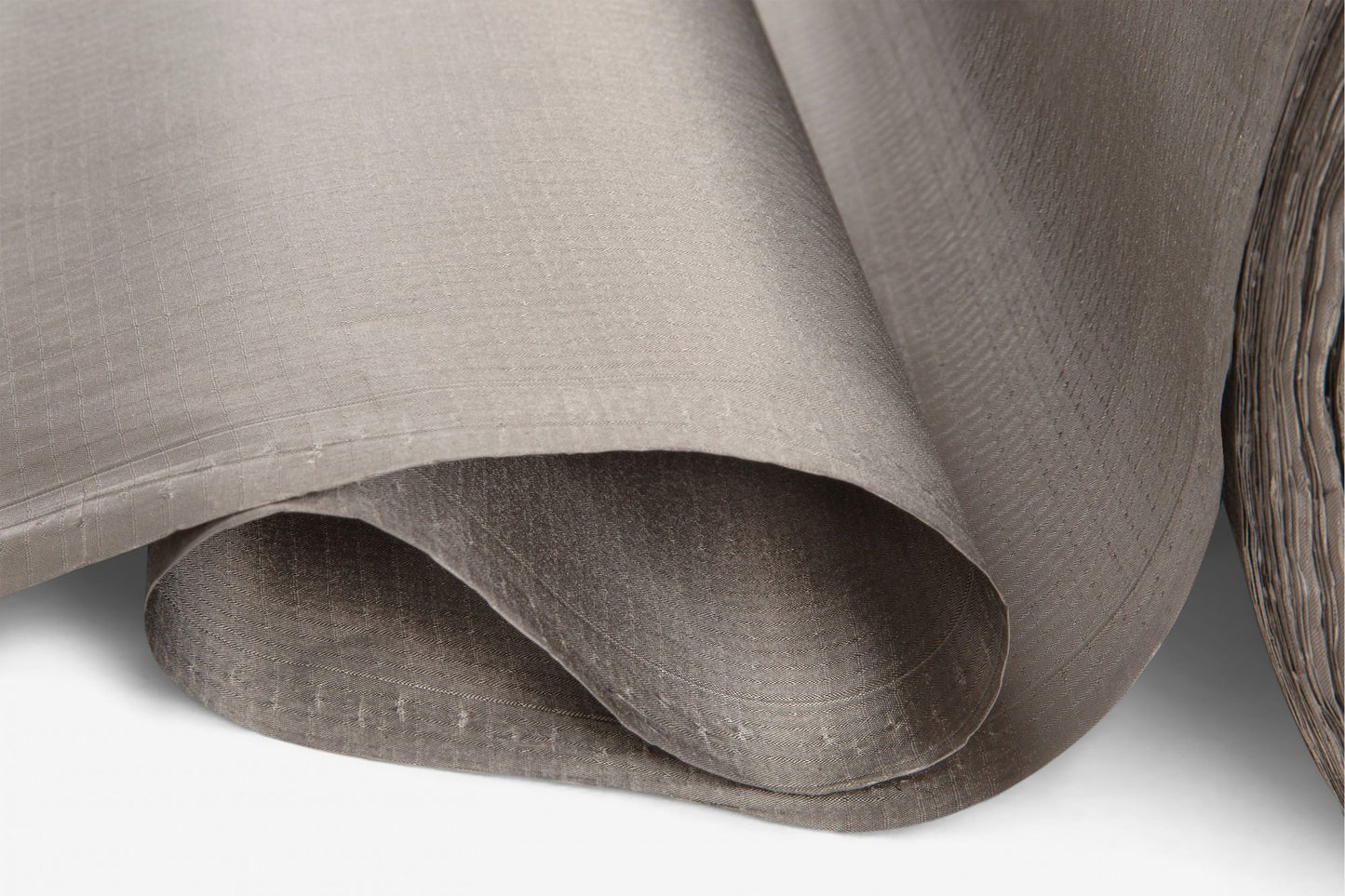

Due to the robust ripstop fabric structure of approx. 2,500 threads per cm² (warp and weft direction), this fabric is used in industry for manytechnical applicationswhich have to withstand mechanical stress. The application areas includeEMV tents, room shielding and textile cable shielding. REACH and RoHS conformity is given.

• Shielding tents
• Electromagnetic shielding
• EMC applications
• Technical Textiles

shielding capability (0.2–2 GHz)

Average of < 87 dB from 0.2 GHz – 2 GHz

shielding capability (2–5 GHz)

Average of < 80 dB from 2 GHz – 5 GHz

shielding capability (5–14 GHz)

Average of < 77 dB from 5 GHz – 14 GHz

• fabric: fabric
• Material: 100% polyamide / nylon 6.6
• Surface resistance: < 0.009 Ω/□
• Weight: 110 g/m² ± 15%
• Thickness: 0.125 mm ± 15 %
